Revolutionize Steel Analysis

Revolutionizing Carbon Analysis with Pegasus

Break the OES Monopoly with Handheld LIBS Analyzer. Instantly Distinguish Grades and Analyze Lithium Content in Ore.

100+

16

Game-changing technology

Innovative solution

Handheld LIBS Analyzer

Revolutionary analyzer for carbon in steel analysis, distinguishing between different grades within seconds.

Discover Pegasus Handheld LIBS

Explore our Handheld LIBS with case studies, FAQs, specs, and testimonials.

Case Studies Showcase

Discover real-world applications of our Vela and Pegasus Handheld LIBS in various industries.

Technical Specifications Overview

Learn about the detailed technical specifications that make our Handheld LIBS stand out.

Find out more about the analyzer through answers to the frequently asked questions by our customers.

Frequently Asked Questions

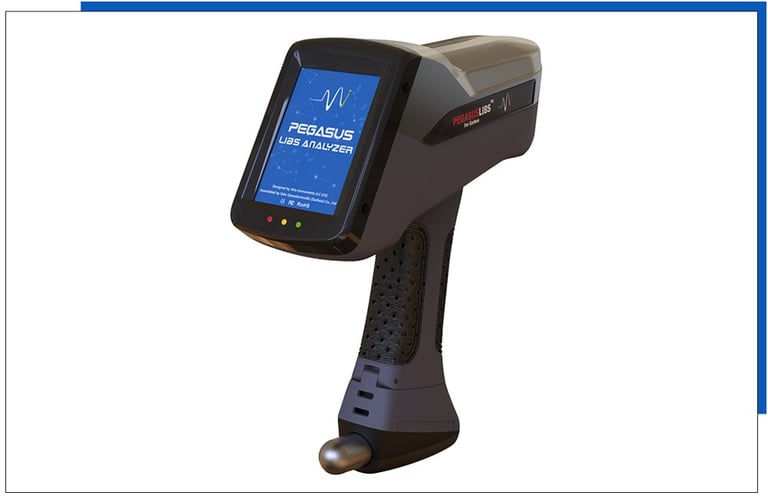

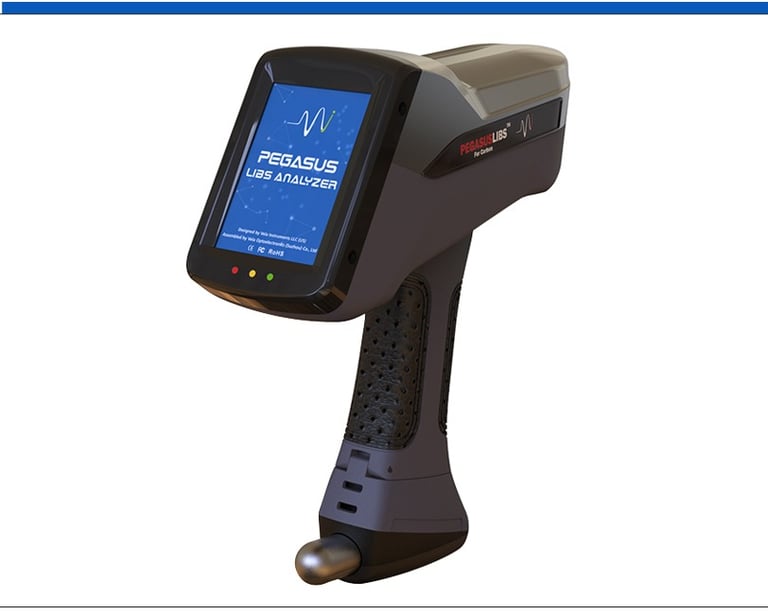

Pegasus Handheld LIBS Analyzer for PMI and More

Revolutionary analyzer for carbon in steel analysis, lithium mining, and more.

Steel Analysis Breakthrough Technology

Distinguish 304 H grade and 304 L grade within seconds with Pegasus Handheld LIBS Analyzer.

Lithium Mining Game Changer

Determine lithium content and impurities in lithium ore with unprecedented accuracy. Ability to distinguish lithium ore such as Spodumene, Amblygonite, Lepidolite, etc.

Field Applications Advancement

Break the monopoly of OES with Pegasus Handheld LIBS Analyzer for steel analysis.

Technical Specifications

Technology:

Weight:

Color

Library:

Dimension (L x W x H) In Inches:

Internal Storage:

Vela Handheld LIBS

3.9 lbs. including battery & Ar Cartridge

Black with Customizable Cover

UNS Based, Highly Customizable

11 X 3.6 X 5.9 （280 X 90 X 150 mm）

16 GB

Laser Specification:

Spectrometer:

Battery:

Wi-Fi:

Display:

Camera:

Alloy Base:

Class 3B, 1064 nm

< 0.1 nm resolution

Lithium-ion battery, 14.8V, 3250mAh

802.11b/g/n/a, support 2.4 & 5.0 GHz

4.3 inch High Resolution, Capacitive Touch Screen, Brightness Adjustable

Not Available

Various Metal Alloy (Al, Mg, Steel, etc.)

Pegasus Handheld LIBS for Carbon

Laser Induced Breakdown Spectroscopy

11 X 3.6 X 5.9 （280 X 90 X 150 mm）

16 GB

Class 3B, 1064 nm

< 0.2 nm resolution

Argon Gas:

Element Capability:

Lithium-ion battery, 14.8V, 3250mAh

802.11b/g/n/a, support 2.4 & 5.0 GHz

4.3 inch High Resolution, Capacitive Touch Screen， Brightness Adjustable

Integrated Macro Camera

Broad Range (Al, B, Be, Bi, Co, Cr, etc.

Not Required

99.99% or Higher Purity

Software:

Vela Software Included

Vela Software Included

Certifications:

IC, FCC, CE, Laser, RoHS, ISO9001, IP54

IC, FCC, CE, Laser, RoHS, ISO9001, IP54

Wanranty:

One Year Factory Warranty

One Year Factory Warranty

3.9 lbs. including battery & Ar Cartridge

Laser Induced Breakdown Spectroscopy

Black with Customerizable Cover

Alloy Steel, Carbon Steel, Stainless Steel

Al, C, Co, Cr, Cu, Fe, etc.

UNS Based, Highly Customizable

Frequently asked questions

What are Vela & Pegasus HH LIBS Analyzers?

Vela and Pegasus Handheld LIBS analyzers are the two models of LIBS represented by Lynx Test and Measurement LLC. They are portable instruments with battery power that can provide elemental analysis of metals and alloys of various specifications. These analyzers serve as great complementary products for Handheld XRF devices and offer a field-friendly alternative to OES (optical emission spectrometers)

How do Vela and Pegasus work?

They utilize highly focused laser pulses to vaporize and ionize testing subject, creating a high-temperature plasma that emits characteristic light. By analyzing this emitted light, Vela and Pegasus provide the elemental composition of the testing subject, especially lighter elements such as Carbon and Lithium, which a handheld XRF instrument cannot measure.

How much does it cost?

Both Vela and Pegasus are priced extremely attractive. Lynx Test and Measurment LLC is devoted to providing the best solutions to customer of all budgets. The efficiency gained and the return on investment (ROI) from owning Vela and/or Pegasus are unmatched by many other instruments targeting the same market.

What's the difference between Vela and Pegasus?

Vela is designed as the light weight (only 2.75lbs) portable unit for a broad range of alloy bases and elements. On the other hand, Pegasus incorporates Argon purging into the system, enabling the measurement of 0.001% or 1000 PPM level of Carbon in stainless steel. This breakthrough capability allows inspectors to distinguish H and L grade stainless steel.

Can the Pegasus HH LIBS be used for Lithium Mining Applications?

Absolutely! The Pegasus handheld LIBS analyzer emerges as a game-changer in the lithium mining industry, providing unmatched capabilities for rapid qualitative and quantitative material analysis. Miners no longer need to wait for laboratories to provide Lithium content data; with Pegasus, they can determine the lithium content within ores such as spodumene, amblygonite, lepidolite, and petalite.

What's the Argon requirement to use Pegasus and where to obtain the supply?

It's recommended to use 99.99% pure Argon when using Pegasus analyzer, especially when low detection limit is critical. Lynx Test and Measurement offers Argon canisters for low-grade carbon analysis. Additionally, Pegasus can be equipped with an adapter and a larger bottle of Argon without the need of changing out the canister after 200 measurements.

Case Study 1:

Case Studies

Case Study 2:

For highly stable and repeatable results, an analyzer needs to maintain a constant temperature. This presents challenges for portable instruments like the Pegasus and Vela Handheld LIBS, which must operate in temperatures ranging from 100°F to 30°F below freezing.

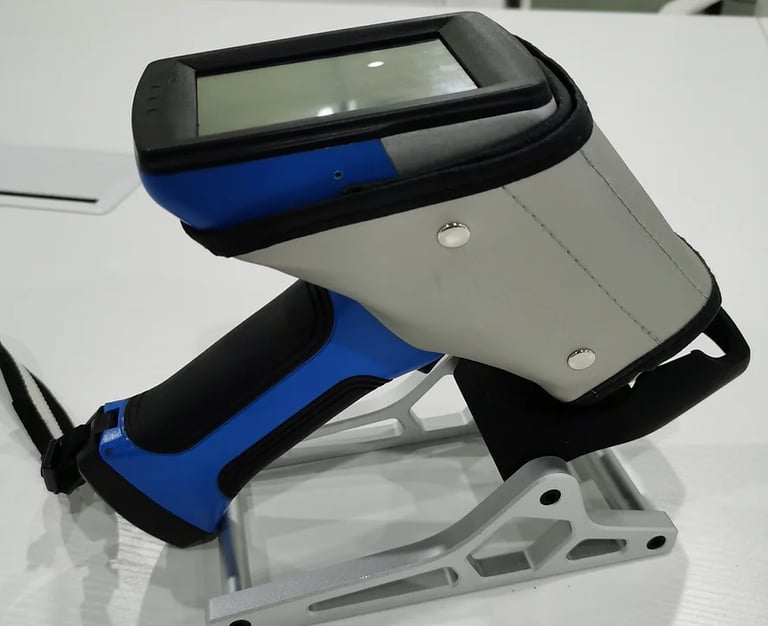

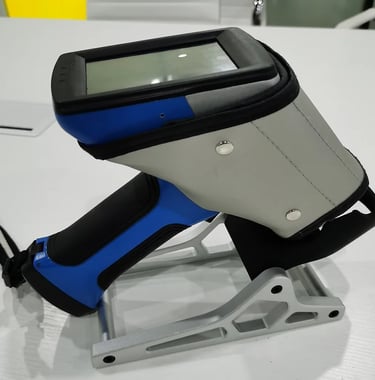

To address this, we customized a cozy leather jacket for the instrument during winter for one of our customers in Northern Europe. This solution reduced the need to draw extra energy to heat up the internal cavity, resulting in over 25% longer battery usage during winter conditions.

Now, this Winterizing Solution is available for purchase in Lynx Test and Measurement’s company store.

Our customer in Korea sought an automated solution to enhance throughput and minimize human error. After consulting two other vendors, both of whom declined to provide a solution, Vela took on the project.

By incorporating an automated robotic arm, we successfully conducted Laser-Induced Breakdown Spectroscopy (LIBS) tests, delivering a comprehensive elemental composition analysis of the sample tube at a remarkable throughput speed of 8 samples per minute.

Moreover, we not only supplied the customer with an API package but also seamlessly integrated the chemical analysis results into their Quality Management System. This efficient and cost-effective solution met our customer’s needs.

Contact Us

Revolutionary handheld analyzer for steel and lithium mining applications.
