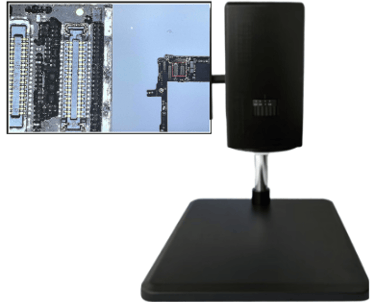

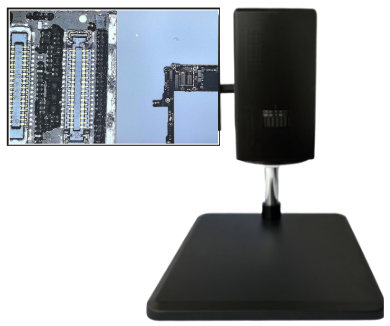

Panoramic Microscope MRS Show Special Price of USD 1,200

Precision Motion Control

The iMotion series by Tuotuo use a non-contact, ultra-high-precision optical encoder to directly measure the position of the motion platform, also known as a closed loop system. Motion control of the standard stage can achieve a high-precision of 50 nm incremental motion and ±200 nm bidirectional repeatability. The position measurement is not impacted by non-linear effects, mechanical action, or elastic deformation.

Tuotuo iMotion Series Products

Experience ultra-high precision and non-contact motion control with our advanced systems.

High Precision Systems

Achieve ±200 nm repeatability with our advanced closed loop motion control technologies.

Smooth Movement

Enjoy friction-free operation with low noise and high dynamics for reliable performance.

Direct Position Measurement

Measure positions directly without backlash, ensuring exceptional accuracy for your applications.

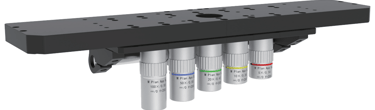

Linear Objective Charger

Technical Specifications

Repeatability:

Encoder Resolution:

Position Feedback Controller:

Installed Capacity:

Maximum lens Size:

Center-to-center Distance:

LC3

LC7

+/- 0.15 micron

50 nm

Closed-loop Servo System

3 pieces

35 mm

40 mm

Motor Type:

Boundary Dimension:

Weight:

Material:

Direct Drive Motor

330mm X 108mm X 68mm

2.5 Kg

Black Anodized Aluminum

+/- 0.15 micron

50 nm

Closed-loop Servo System

7 pieces

35 mm

40 mm

Direct Drive Motor

450 mm X 108 mm X 73 mm

4.5 Kg

Black Anodized Aluminum

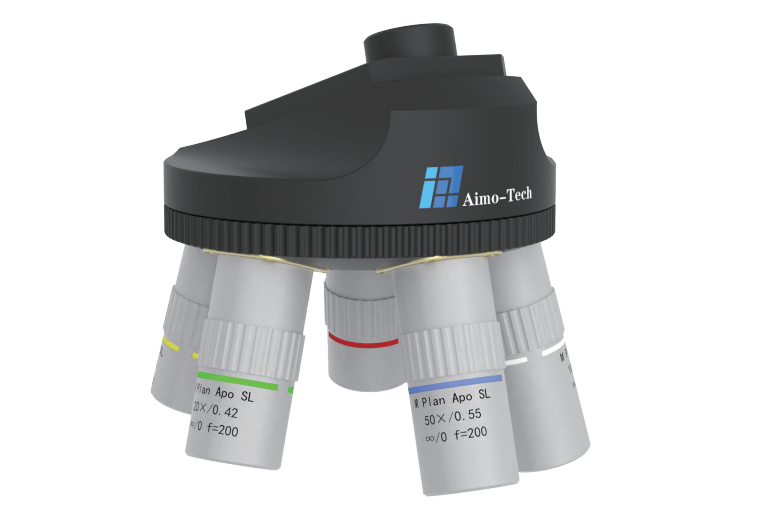

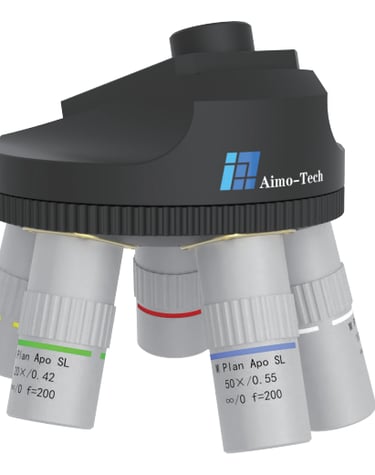

Microscope Objective Turret

• Up to Five Objectives

• Minimum Wear with Highly Cleanliness Surface

• High Stability and Easy Operation

• Compact in Design

• Can be Mounted Directly on Microscope

Technical Specifications

Repeatability:

Encoder Resolution:

Position Feedback Controller:

Installed Capacity:

Maximum lens Size:

Center-to-center Distance:

RC5

+/- 0.0015 micron

900,000 Circle

Closed-loop Servo System

5 pieces

35 mm

40 mm

Motor Type:

Boundary Dimension:

Weight:

Material:

Direct Drive Motor

116 Diameter X 80.5 mm

1.5 Kg

Black Anodized Aluminum

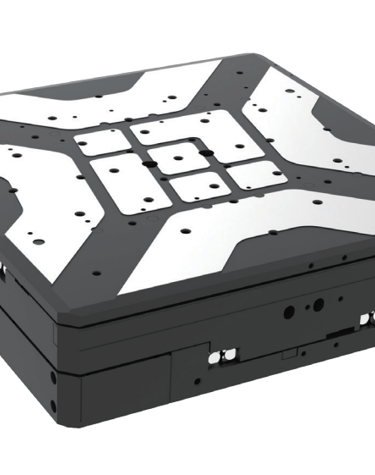

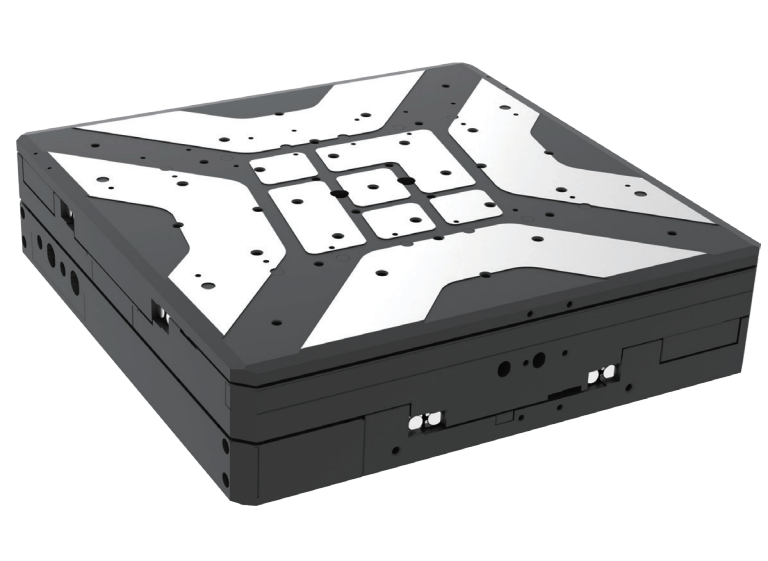

High Precision Motorized XY Stages

• Cable Internal Integration

• High Accuracy; High Dynamic

• Smooth Operation

• Speedy Acceleration and Velocity

• Optical Grating Feedback Achieve High Precision

Repeatability:

Encoder Resolution:

Position Feedback Controller:

Maximum Speed:

Horizontal Straightness:

+/- 0.25 micron

Distance of Run:

Maximum Load:

Boundary Dimension:

Weight:

Material:

DG150

50 nm

Closed-loop Servo System

300 mm/s

+/- 3 micron

20 Kg

150 mm X 150 mm

330 mm X 330 mm X 80 mm

20 Kg

Black Anodized Aluminum

Motorized Hollow Core Rotary Stages

Repeatability:

Encoder Resolution:

Position Feedback Controller:

Maximum Speed:

Horizontal Straightness:

Distance of Run:

AG 075

+/- 0.25 micron

50 nm

Closed-loop Servo System

100 mm/s

+/- 3 micron

110 mm X 75 mm

Maximum Load:

Boundary Dimension:

Weight:

Material:

1 Kg

330 mm X 225 mm X 45 mm

5 Kg

Black Anodized Aluminum

• Fast Response and Adjustment

• Smooth Operation

• Speedy Acceleration and Velocity

• Optical Grating Feedback Achieve High Precision

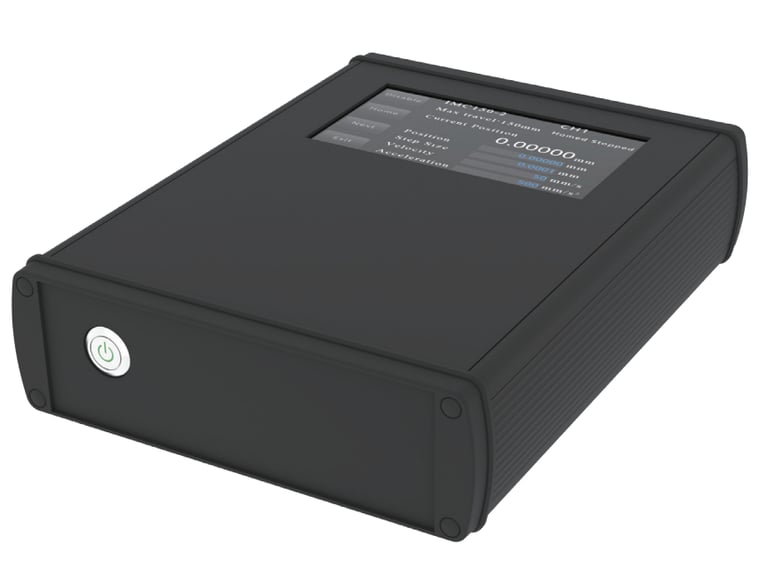

Table Top Controller

• Cable Internal Integration

• High Accuracy; High Dynamic

• Smooth Operation

• Speedy Acceleration and Velocity

• Optical Grating Feedback Achieve High Precision

Controlled Axes:

Motor Type:

Continuous / Peak Current:

Encoder Type:

Encoder Bandwidth:

1 Piece

Communication:

Front Panel:

Supply Voltage:

Weight:

Material:

TC 01

All Applicable

5 A / Axis

Incremental / Absolute

20 M

5.0" Full Color 1280 X 720

232

220 V; 50 Hz

1.5 Kg

Black Anodized Aluminum
