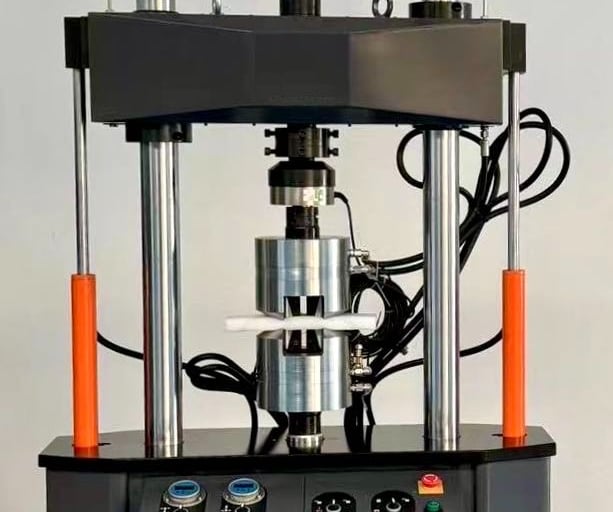

Universal Testing Machine

Applicable Industries and Field of Studies

composite materials, rubber and plastic, aviation and aircraft, metal, new energy, automobile, aerospace, medical equipment, iron and steel metallurgy, civil engineering, new energy, teaching and researching, and other test fields

Technical Specifications

LYNX 7150

LYNX 7105

LYNX 7600

Force Capacity

Model

5KN (1124 lb)

50KN (11240 lb)

3000KN (67440 lb)

Measurement Range

0.2% to 100% Full Scale

0.2% to 100% Full Scale

0.2% to 100% Full Scale

Measurement Accuracy

Better than + / - 0.5%

Better than + / - 0.5%

Better than + / - 0.5%

Distance Increment

0.04 micron

0.04 micron

0.04 micron

Testing Speed

0.001-1000 mm/min

0.001-1000 mm/min

0.001-300 mm/min

Power Supply

220V, 50Hz, 1kW

220V, 50Hz, 1.5kW

220V, 50Hz, 4kW

Equipment Dimension

720 X 500 X 1800 mm

720 X 500 X 1800 mm

1110 X 760 X 2240 mm

Equipment Weight

~ 400 kg

~ 400 kg

~ 1200 kg

Innovative Testing Solutions

Explore our universal testing machine for mechanical testing of materials and components according to ASTM and ISO standards.

Multiple load cells and mechanical Grib options. Please contact us for more details.
